Brand Name : YOUBI
Model Number : UP-6195
Certification : CE,ISO
Place of Origin : CHINA
MOQ : 1 Unit
Price : Negotiable
Payment Terms : T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability : 30 Unit/month
Delivery Time : 5-15 work days
Packaging Details : Professional Export Wooden Box Packaging
Product name : Constant Temperature And Humidity Chamber
HS Code : 8479899990
Temperature Range : -70ºC~150ºC
Humidity Range : 20%~98%
Temperature Fluctuation : ±0.5ºC
Internal Chamber Material : SUS#304 Stainless Steel, Mirror Finished
External Chamber Material : Stainless Steel
Warranty : 1 Year
Custom Service : OEM,ODM
Size Service : Support Customer Customization
The UP-6195 Environmental Test Chamber, also known as a climatic or environmental chamber, is a precision instrument used to simulate extreme environmental conditions. Its primary function is to expose products, materials, or components to controlled combinations of temperature and relative humidity, accelerating the aging or degradation process to assess reliability and performance.
The chamber operates within a wide range, typically from -70°C to +180°C and 10% to 98% relative humidity. It features programmable logic controllers (PLC) with touchscreen interfaces, allowing users to create complex, repeatable test cycles.
IEC60068-2-1, IEC60068-2-2, IEC60068-2-78
| Parameter | Model 1 | Model 2 |
|---|---|---|
| Internal Dimension (mm) | 400×500×500 | 500×600×750 |
| Overall Dimension (mm) | 860×1050×1620 | 960×1150×1860 |
| Interior Volume | 100L | 225L |
| Temperature Range |
A: -20ºC to +150ºC B: -40ºC to +150ºC C: -70ºC to +150ºC |
|
| Temperature Fluctuation | ±0.5ºC | |
| Temperature Deviation | ±2.0ºC | |
| Humidity Range | 20% to 98% RH | |
| Humidity Deviation | ±2.5% RH | |
| Cooling Rate | 1ºC/min | |
| Heating Rate | 3ºC/min | |
| Refrigerant | R404A, R23 | |
| Controller | Programmable color LCD touch screen with Ethernet connection | |
| Power Supply | 220V 50Hz / 380V 50Hz | |
| Maximum Noise | 65 dBA | |
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Defines installing those products in the field and providing after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
For our standard machine which means normal machines, if we have stock in the warehouse, delivery is 3-7 working days. If there is no stock, normally, the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
|
|

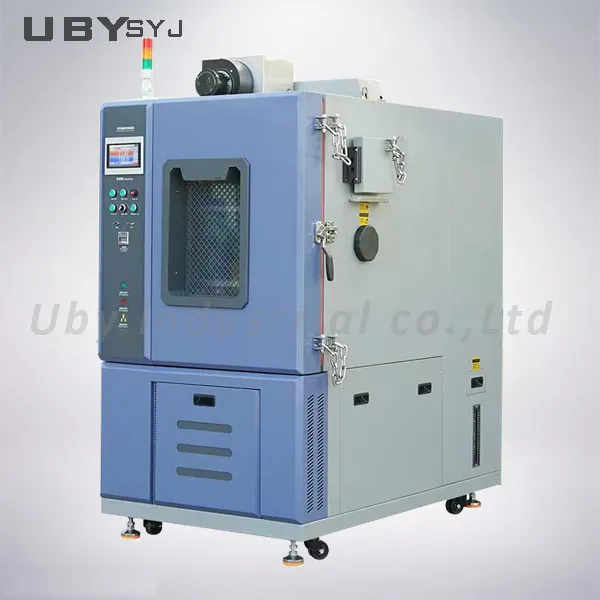

UP-6195 Environmental Test Chamber with Programmable Logic Controllers (PLC) and Touchscreen Interfaces in SUS#304 Stainless Steel Images |
